KCT8525D-2
5GHz 802.11ac RF Front-End Module
产品介绍
KCT8525D-2 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8525D-2 integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.
KCT8525D-2 has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.

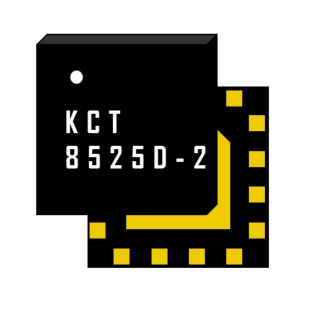

KCT8525D-2 is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8525D-2 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.
产品规格
Integrated 802.11ac 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 31.5dB at 5V
Receive gain: 14.5dB at 5V
Noise Figure: 2.1dB at 5V
Output power:
+22.5dBm @ -35dB DEVM, VHT80/MCS9, 5V
+23.5dBm @ -30dB DEVM, VHT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃per JEDEC J-STD-020)
RoHS and REACH Compliant
