KCT8526H
5GHz 802.11ac RF Front-End Module
产品介绍
KCT8526H is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8526H integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.
KCT8526H has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.

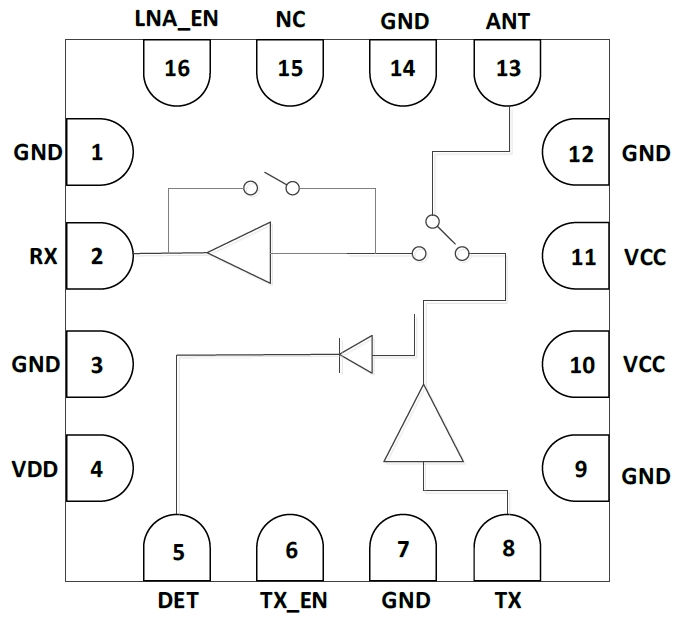

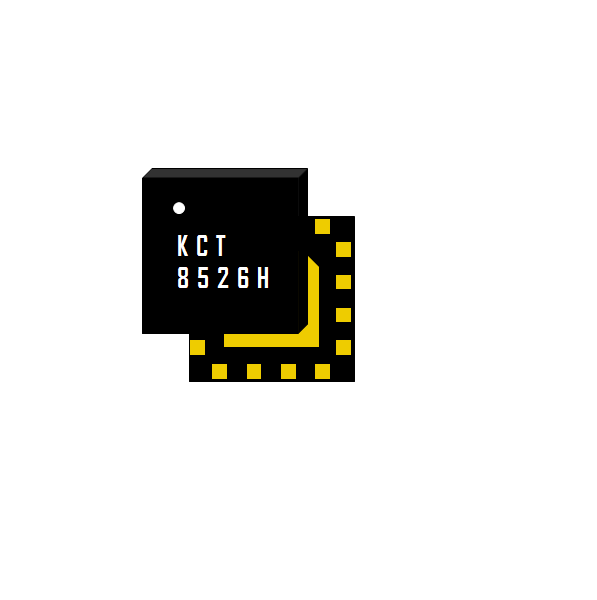

KCT8526H is assembled in a compact, low-profile 3.0x3.0x0.55mm 16-lead QFN package. KCT8526H is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.
产品规格
Integrated 802.11ac 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 31dB at 5V
Output power:
+23dBm @ -35dB DEVM, VHT80/MCS9, 5V
+24dBm @ -30dB DEVM, HT20/MCS7, 5V
Receive gain: 16.5dB at 5V
Noise Figure: 1.7dB at 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L, 3.0mm x 3.0mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH compliant
