KCT2829L

0.4-7.125GHz low insertion loss SPDT RF Switch

产品介绍

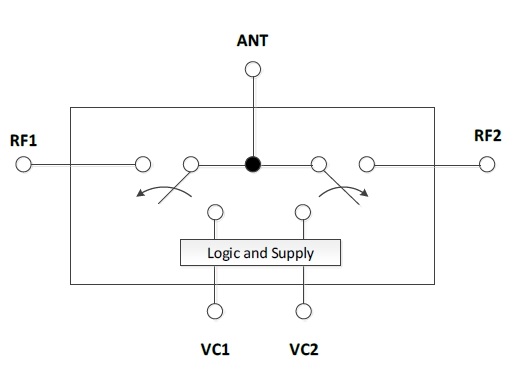

KCT2829L is a single-pole, double-throw (SPDT) switch, which is operating from 0.4GHz to 7.125GHz frequency range. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN applications.



KCT2829L features low insertion loss, high isolation and positive voltage operating with low power consumption. The KCT2829L SPDT switch is provided in a compact 1.0mm x 1.0mm x 0.45mm 6-lead DFN package.
